產品規格參數/Technical Parameters
壁掛廣告機技術參數/Technical parameters of wall mounted advertising machine
| 產品型號?Product?model | MS-18.5G01 | MS-22G01 | MS-24G01 | MS-27G01 | MS-32G01 | MS-43G01 | MS-49G01 |
| 整機尺寸Machine?size?mm | 453*59.7*275 | 527.3*47.4*318.7 | 565*59.7*338 | 639*59.7*378 | 739*55.5*434.5 | 975*54.9*570.5 | 1109*54.9*644 |
| 屏幕顯示尺寸（英寸）The?screen?displays?the?size（inch） | 18.5? | 21.5 | 24 | 27 | 32 | 43 | 49 |
| 屏幕分辨率?Screen?resolution | 1366*768（1920*1080可選?optional） | 1920*1080 | 標配1920*1080（4K選配）Standard:?1920x1080?(4K?optional) | ||||
| 刷屏率Screening?rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| 整機重量Operating?weight?（kg） | 5.2KG | 6.05KG | 7.15KG | 7.9KG | 11.0KG | 18.25KG | 24.85KG |
| 支持格式（高清）Supported?Format?(HD) | 1080P | ||||||
| 水平視角（度）Horizontal?perspective?(degree) | ±178° | ||||||
| 垂直視角（度）Vertical?visual?angle?(degree) | ±178° | ||||||
| 輸出功率??Output?power? | 2X5W(8Ω）@1khz.THD+N＜10% | ||||||
| 版本Version? | 安卓?android | ||||||
| 電源功率??power?(w) | 30-90W | ||||||
| 待機功率Standby?power?(w) | <2.5W | ||||||
| 工作電壓?Working?voltag（v） | 110-220v、50/60Hz | ||||||
| 觸控方式（可選）Touch?mode?(optional) | 紅外、電容????Infrared,?capacitor | ||||||
| 工作/儲存溫度Operating?/?storage?temperature | 0℃-50℃???-20℃-55℃ | ||||||
| 工作濕度Working?humidity | 20%-80%（不凝結）?Noncondensing? | ||||||
| 壽命?Lifetime | >60000H | ||||||
壁掛廣告機技術參數/Technical parameters of wall mounted advertising machine
| 產品型號?Product?model | MS-50G01 | MS-55G01 | MS-65G01 | MS-75G01 | MS-85G01 | MS-98G01 | MS-100G01 |
| 整機尺寸Machine?size?mm | 1135*54.9*657 | 1250*54.9*721 | 1467*54.9*846 | 1708.6*989*95.4 | 1919.1*1101.7*97.7 | 2199.7*1260.6*99 | 2254.2*1287.5*94 |
| 屏幕顯示尺寸（英寸）The?screen?displays?the?size（inch） | 50 | 55 | 65 | 75 | 85 | 98 | 100 |
| 屏幕分辨率?Screen?resolution | 標配1920*1080（4K選配）Standard:?1920?*?1080?(4K?optional) | 標配3840*2160（4K）Standard:?3840?*?2160?(4K) | |||||
| 刷屏率Screening?rate | 60Hz | ||||||
| 整機重量Operating?weight?（kg） | 25KG | 29.5KG | 42.6KG | 58.0KG | 66.0KG | 102.0KG | 106.0KG |
| 支持格式（高清）Supported?Format?(HD) | 1920*1080 | 3840*2160 | |||||
| 水平視角（度）Horizontal?perspective?(degree) | ±178° | ||||||
| 垂直視角（度）Vertical?visual?angle?(degree) | ±178° | ||||||
| 輸出功率??Output?power? | 2X5W(8Ω）@1khz.THD+N＜10% | ||||||
| 版本Version? | 安卓??Android? | ||||||
| 電源功率??power?(w) | 30-90W | 30-100W | 30-120W | 30-280W | 30-420W | 30-430W | 30-450W |
| 待機功率Standby?power?(w) | <2.5W | ||||||
| 工作電壓?Working?voltag（v） | 110-220v、50/60Hz | ||||||
| 觸控方式（可選）Touch?mode?(optional) | 紅外、電容?Infrared,?capacitor | ||||||
| 工作/儲存溫度Operating?/?storage?temperature | 0℃-50℃????-20℃-55℃ | ||||||
| 工作濕度Working?humidity | 20%-80%（不凝結）?noncondensing? | ||||||
| 壽命?Lifetime | >60000H | ||||||

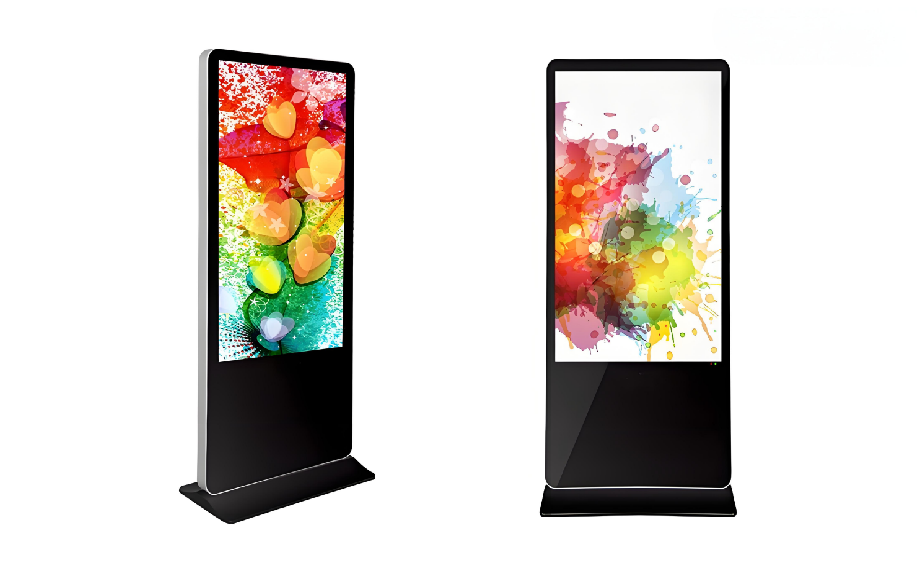

立式廣告機技術參數/Technical parameters of vertical advertising machine
| 產品型號?Product?model | MS-32G02 | MS-43G02 | MS-49G02 | MS-50G02 |
| 對角線尺寸（英寸）Hierarchical?line?size（inch） | 32 | 43 | 49 | 50 |
| 分辨率?Resolution?ratio | 1080??×??1920?(FHD)?@60hz | |||
| 亮度(典型值)Brightness?(typical?value) | 350cd/m2 | |||
| 對比度(典型值)Contrast?ratio?(typical?value) | 1200:01:00 | |||
| 可視角度(水平/垂直)Visual?Angle?(horizontal?/?vertical) | 178°/178° | |||
| 可視區域Visual?area(mm) | 391.1(W)×696.5(H)? | 527(W)×939.1(H)? | 602(W)×1071.7(H)? | 614.5(W)×1093.7(H)? |
| 整機尺寸Machine?size(mm) | ??462×1500×76（底座：Base471*400*56.7） | 596×1700×66（底座：Base605*400*56.7） | ????671×1755×66（底座：Base690*400*56.7） | 683×1777×66（底座：Base690*400*56.7） |
| 壽命?Lifetime | >60000H | |||
| 電源功耗(典型值)Power?supply?power?consumption?(typical?value) | 90W | |||
| 電源待機功耗Power?standby?power?consumption | ＜2.5W | |||
| 整機重量The?weight?of?the?machine | 24.8Kg | 35.2Kg | 40.5Kg | 40.5Kg |
| 觸控方式Touch?the?way | 紅外、電容（可選）Infrared,?capacitor?(optional) | |||
| 版本?Edition | 安卓Android | |||
| 工作溫濕度Working?temperature?and?humidity | 0℃~50℃??20%~80%(不凝結)(noncondensing) | |||
| 存儲溫濕度Store?temperature?and?humidity | ?-20℃~55℃????10%~90%(不凝結)(noncondensing) | |||
